Understanding ASME BPE
ASME BPE stands for the Bioprocessing Equipment standard set by the American Society of Mechanical Engineers. First introduced in 1997, it was created in response to challenges within the biopharmaceutical industry, particularly concerning inconsistencies in equipment cleanliness. This standard ensures that equipment meets rigorous sanitary requirements, which is vital for industries where product purity is paramount.
Industries that rely heavily on ASME BPE standards include biopharmaceuticals, pharmaceuticals (especially for API and cosmetic production), and food and beverage sectors. Each aspect of equipment manufacturing adheres to strict guidelines, and these standards are continuously updated to incorporate advancements in materials and fabrication methods.
ASME BPE and Filter Housings
Leading manufacturers produce a variety of ASME BPE-compliant sanitary filter housings, alongside other hygienic options. While these BPE-compliant housings were once quite costly, they’ve become more accessible over time. However, they still command a higher price compared to non-hygienic and even standard hygienic housings. This is due to the additional skill and superior materials required during their manufacture.
If you're looking for guidance on ASME BPE compliance and filter technology, don't hesitate to reach out to a filter expert for support.
What Defines a Hygienic Filter Housing?
1. Design Features
Hygienic filter housings possess several key design elements:

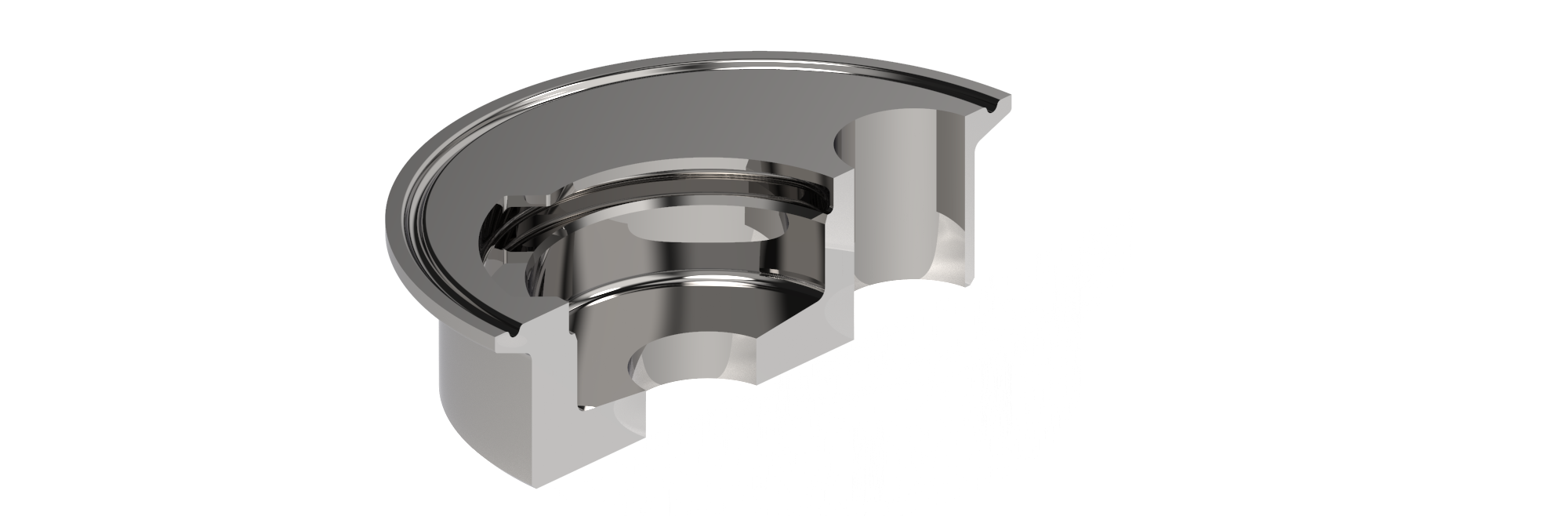

- Sanitary body closures and couplings
- Sloped surfaces to facilitate efficient draining
- Components designed for in-place cleaning between batches
- A wetted surface finish with an SF4 (0.38Ra) rating, surpassing standard hygienic finishes, which typically range from 0.4 to 0.8 Ra
2. Construction Materials
The choice of construction material must align with the intended application to minimize risks of corrosion and contamination. For instance, 1.4435 stainless steel is often used due to its enhanced resistance to corrosion from high-purity water and steam. Our 76C and 72C ranges of sanitary housings utilize this steel. However, if your application involves high temperatures or exposure to concentrated solvents like hydrochloric acid, a nickel-based Alloy-22 is more suitable for its superior corrosion resistance.
Elastomeric seals and O-rings must also meet relevant FDA 21CFR 177 and USP Class VI approvals.
3. Material Certification and Traceability

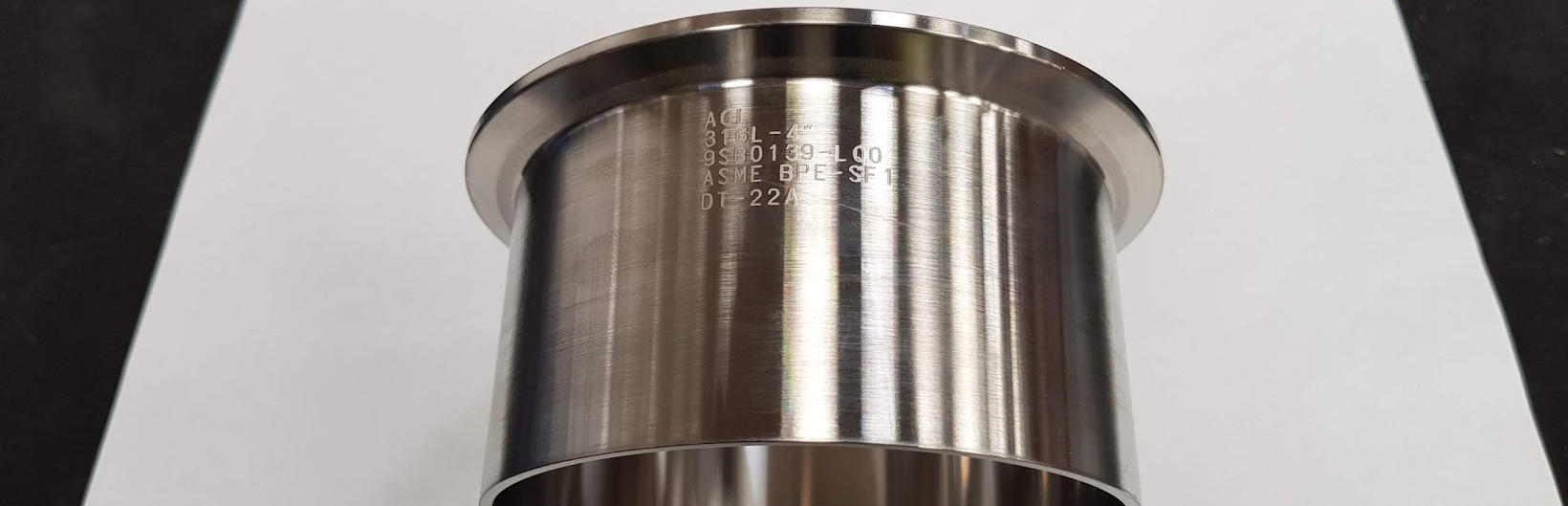

All BPE-grade housings should come with documentation connecting wetted and pressure-retaining components to the original mill 3.1 certificates. Each component carries distinct identification marks, though these might not be visible on the finished housing. Consequently, the accompanying paperwork is essential for quality assurance and traceability.
4. Fabrication
Stainless steel grades like 1.4435 offer improved corrosion resistance only when welding is meticulously controlled to keep ferrite levels below 3% in the heat-affected zones. Due to this stringent ferrite limit, manufacturers need new welding procedures for both automated and manual processes. Third-party approval of these procedures is necessary, along with the training and certification of welders. Manufacturers should also measure and record ferrite levels to confirm they remain within the acceptable range.
Housings should allow for as much automated welding as feasible. The design should permit welds to be fully ground to achieve the specified surface finish.
Risk Management Through Compliance
Unsurprisingly, the extra documentation, specialized materials, and testing increase production costs. BPE-compliant housings usually cost at least 50% more than standard pharmaceutical housings, not including the added expense of premium materials like Alloy-22. Is the investment worthwhile? That depends on the financial and quality impacts within your specific process. Adopting BPE-compliant housings significantly reduces the risk of contamination from corrosion byproducts or batch-to-batch cleaning failures.
At Amazon Filters, we offer a selection of single-stack filter housings that comply with ASME BPE. Depending on your needs, it might be more practical to adopt certain aspects of the BPE standard while managing capital expenditure. To find the optimal specification for your process, consult with our technical experts today.
---
If you're seeking further insight into hygienic filter housings, feel free to explore our interactive content below.
