Stainless Steel Twill Weave Mesh

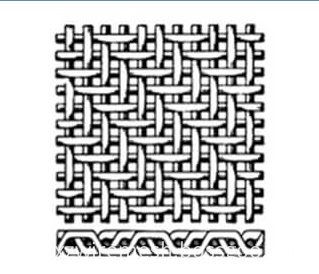

Stainless Steel Twill Weave Mesh is a kind of wire cloth product with flat and smooth mesh, uniform mesh, no deformation, good extensibility and abrasion resistance. Twill weave stainless steel mesh warp and weft threads interwoven from the adjacent strands - weaving in the direction of silk and shuttle.The movement of this upper and lower knitting is the movement of the shuttle.Twill weaving can be used to weave different specifications of mesh and mesh screen.

Material: 201, 304, 304 (L), 310, 316 (L), etc

Features: Features: stainless steel twill weave net is an acid, alkali resistant, high temperature, tensile and wear resistance strong product, has the filtering precision, the load strength high characteristics.

USES: Twill weave stainless steel mesh is widely used in aerospace, petroleum, chemical industry, scientific research and transportation, etc, used in acid, alkali environment conditions screening and filter, oil industry as mud mesh, chemical fiber industry as screen mesh, plating industry as pickling nets.


Extra tip: Stainless steel twill wire mesh gauge packaging must be strict, outer waterproof paper - moistureproof film - cushion film - cardboard packaging products in order to prevent wooden - damp impact in the transport process.


steel mesh woven wire mesh

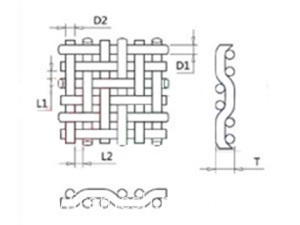

The warp wire (D1) : all longitudinal braided lines.

The weft wire (D2) : all horizontal weaving lines.

Aperture (L1 and L2) : the distance between two meridians or two weft.

Mesh number:number of metal mesh holes per inch.

Thickness (T) : thickness of the net.

Specifications:

SPEC

WIRE DIAMETER

APERTURE

OPENING

RATE

WEIGHT(POUND)

INCH

MM

INCH

MM

200X200

.0021

.0533

.0029

.0737

33.6

6.2

250X250

.0016

.0406

.0024

.0610

36.0

4.4

270X270

.0016

.0406

.0021

.0533

32.2

4.7

300X300

.0051

.0381

.0018

.0457

29.7

3.04

325X325

.0014

.0356

.0017

.0432

30.0

4.40

400X400

.0010

.0254

.0015

.370

36.0

3.3

500X500

.0010

.0254

.0010

.0254

25.0

3.8

635X635

.0008

.0203

.0008

.0203

25.0

2.63

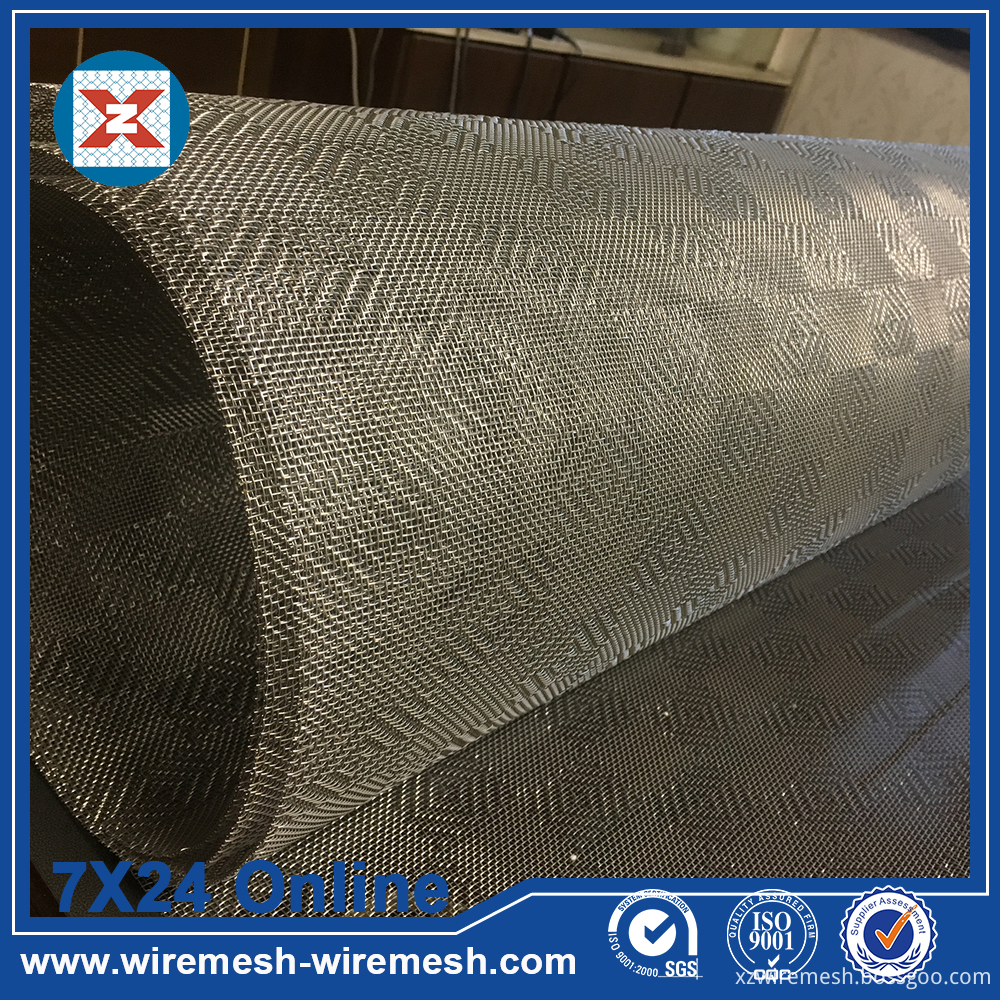

Products Photoes:

Stainless Steel Sieve



Stainless Steel Twill Weave Mesh,Stainless Steel Wire Cloth,Twill Weave Mesh,Stainless Mesh Wire
